Do you feel frustrated by poor sound quality in your space, where conversations are hard to follow or music sounds muffled?

A common issue is sound waves bouncing off hard walls, which creates annoying echoes, and acoustic panels can help solve this issue.

This blog provides a straightforward method for creating DIY acoustic panels that solve this sound pollution problem.

What are Acoustic Panels?

Acoustic panels are simply sound-absorbing tools designed to improve the quality of sound within a room.

They don’t block sound from escaping, that’s soundproofing; instead, they control and limit unwanted internal reflections, like echo and flutter.

These panels are typically made with a porous core material, like mineral wool or dense foam, which takes in sound energy and converts it into a small amount of heat.

This leads to much clearer audio, making the space better for recording, listening to music, or just having a conversation.

DIY Acoustic Panels

With a bit of planning, you can significantly upgrade your space’s sound quality in a matter of hours.

The following steps explain the construction process simply and clearly.

Step 1: Gather Materials and Prepare the Frame

Before starting, it’s wise to have all the necessary supplies ready, like wooden boards for the frame, sound-absorbing material, like mineral wool, and fabric.

First, cut the wooden boards into the desired frame pieces. Apply wood glue to the ends and then secure the frame using screws.

It is important to make sure the corners are square so the panel sits flat against the wall.

Remember to measure twice and cut once for the best results.

Step 2: Install the Sound Absorbing Core

Once the wooden frame is constructed, the next step is to place the dense acoustic material inside.

The sound absorber should fit snugly within the frame. If the material is slightly too large, carefully cut it down to size using a utility knife.

Make sure the material sits flush with the frame’s edges.

Wear gloves and a mask when working with mineral wool or fiberglass to prevent irritation

Step 3: Wrap the Frame with Fabric

With the core material set, it’s time to add the fabric cover.

Lay the chosen breathable fabric face down on a clean surface. Place the frame with the sound core inside on top of the fabric.

Pull the fabric taut over one long side and use a staple gun to secure it to the back of the frame.

Then, move to the opposite side, pull the fabric tight, and staple it down. The fabric needs to be tight to achieve a neat, professional appearance.

Step 4: Finish the Corners and Final Securing

Next, focus on folding and stapling the fabric corners to give the panel a clean finish.

The goal is to create sharp, smooth edges, similar to wrapping a gift box.

After securing the corners, finish stapling the remaining two sides of the fabric to the back of the frame, maintaining tension as you go.

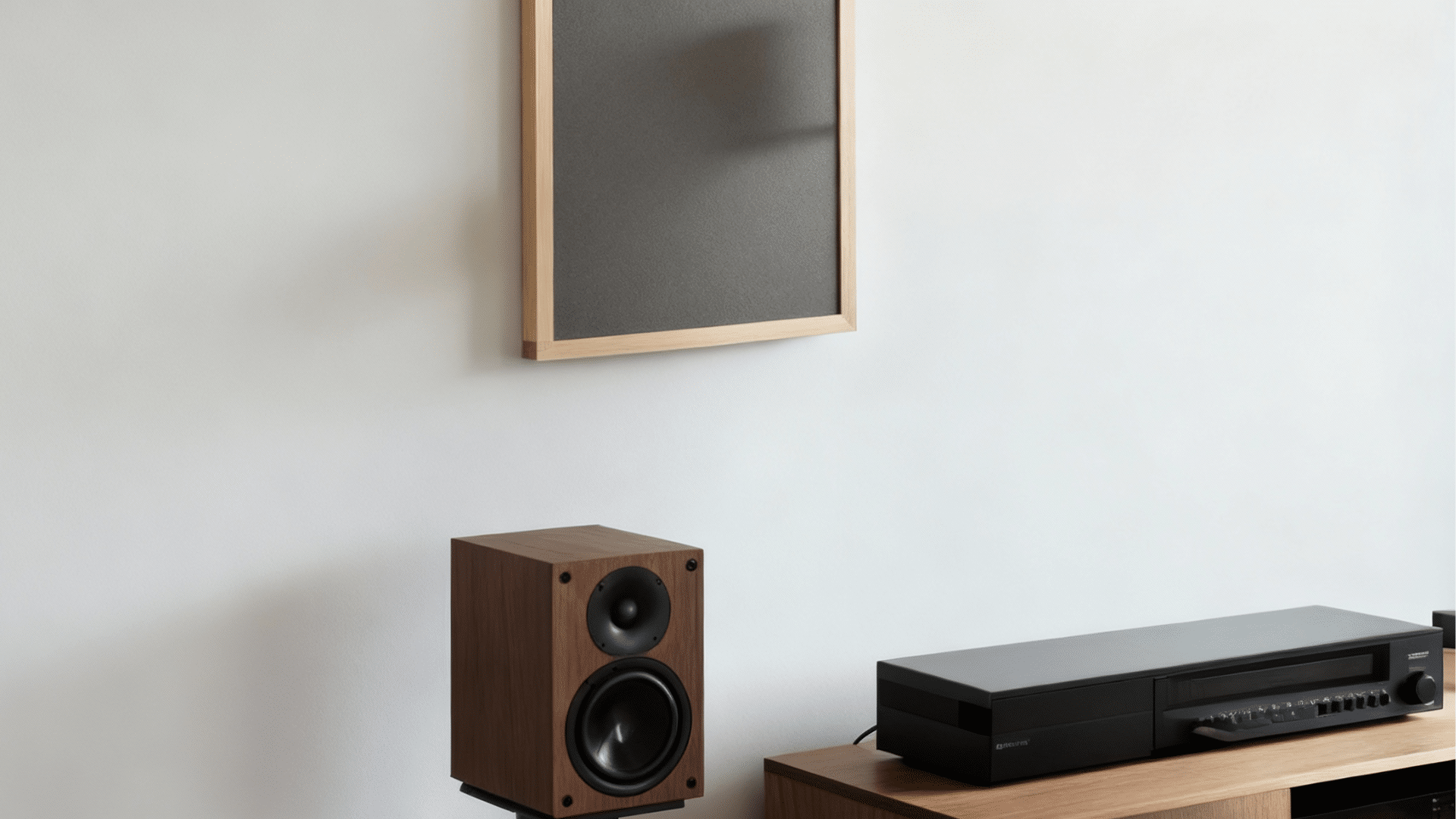

Step 5: Mount the Panels

The final step is to put your new DIY acoustic panel up on the wall.

Generally, panels should be mounted at the first reflection points, the spots where sound initially hits the wall.

A simple way to locate these is using a mirror: if you can see your speakers in the mirror while sitting in your listening position, that’s a reflection point.

Attach suitable hanging hardware to the back of the frame, then secure the panel firmly to the wall.

Do Acoustic Panels Really Work?

Yes, acoustic panels definitely work because they address the root cause of poor sound quality: sound reflections.

The materials used, usually a dense fiberglass or rockwool core, are exceptionally good at absorbing sound waves rather than letting them bounce off hard wall surfaces.

This absorption dramatically reduces reverb and echo, which are the main problems in untreated rooms.

The result is a much tighter, cleaner sound, making them a very effective treatment for any space used for listening or recording.

Best Places to Install DIY Acoustic Panels in Your Space

Knowing where to put your finished acoustic panels is just as important as building them well. Strategic placement maximizes their sound-controlling power.

1. First Reflection Points on Walls

The most important spots are where sound first bounces off the side walls and ceiling. Put panels at these first reflection points to stop early echoes and improve stereo imaging for clearer sound.

2. Behind the Speakers

Placing panels on the front wall, directly behind the main loudspeakers, helps to control bass frequencies and prevents sound from immediately reflecting into the room, tightening the low-end.

3. Ceiling Cloud

If you have a particularly high ceiling, mounting a panel overhead. Adding a DIY acoustic cloud is highly effective. It controls vertical reflections, which significantly reduces the overall echo in the space.

4. Back Wall

The rear wall is often a major source of reflections that cause a general muddle in the sound. Placing thicker panels or bass traps here reduces flutter echo and smooths out the room’s frequency response

Wrapping It Up

This DIY acoustic panel helps to achieve a much better-sounding environment.

You now have high-quality sound treatment built with your own hands, and you avoided the high cost of buying commercial panels.

Remember that controlled sound makes all the difference, whether you are trying to mix music, hold professional meetings, or simply enjoy a quiet movie night.

With the basic skills from framing to careful placement, you are ready to apply these techniques to other spaces that might benefit from clearer acoustics.

Don’t forget to let us know the difference DIY acoustic panels make in your space.
